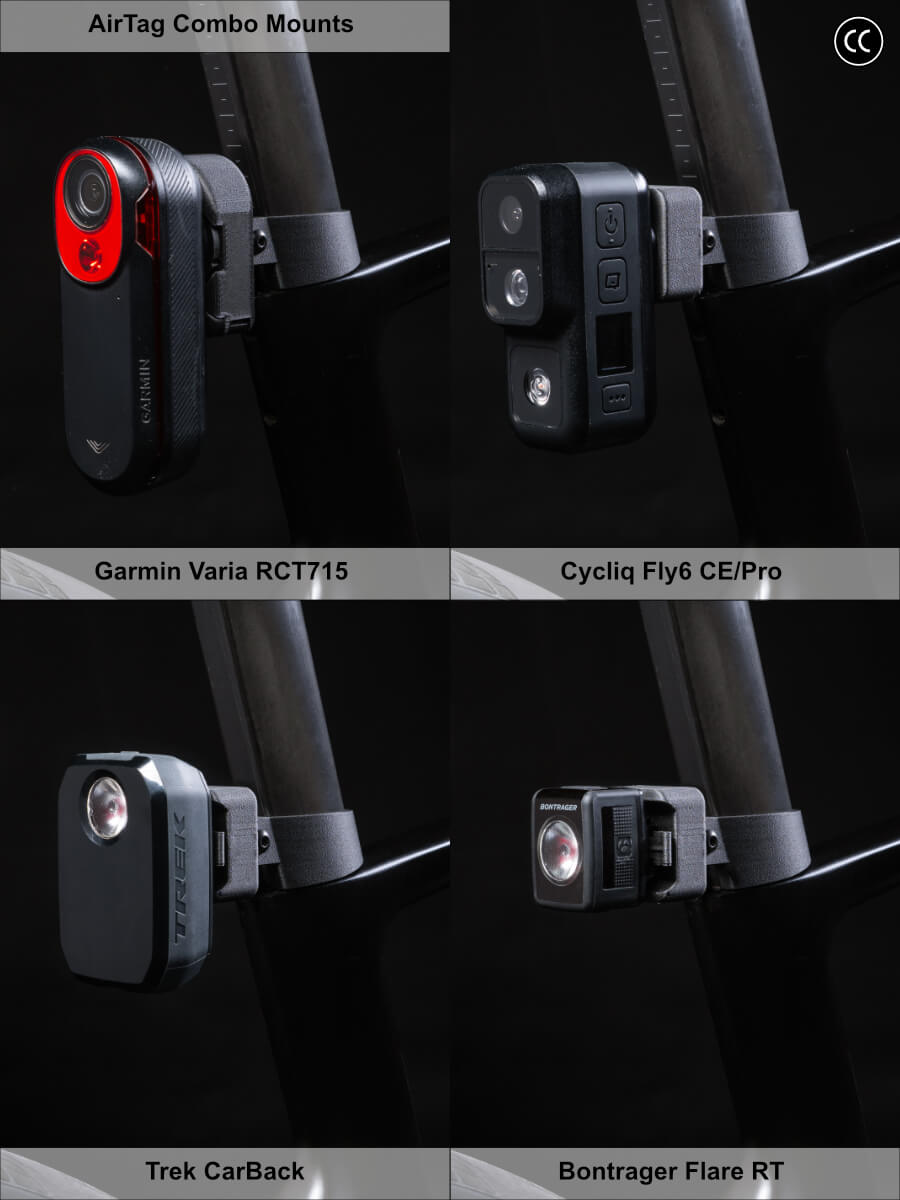

Mount for Scott Foil (MY16 - 19)

We ship most orders within 1 business day.

International Shipping

New Zealand - AU $7 flat rate

US / Canada / Asia Pacific - AU $10 flat rate

UK / Europe / Rest of World - AU $15 flat rate

Free standard shipping / discounted express shipping on orders over AU $100.



Shipping time from Australia in business days is as follows:

USA / UK / NZ
Standard - 5 to 15 days
Express - 3 to 8 days

Canada
Standard - 10 to 20 days
Express - 5 to 10 days

Asia Pacific
Standard - 10 to 20 days
Express - 4 to 8 days

Europe / Rest of World
Standard - 15 to 25 days
Express - 6 to 10 days



International orders may be subject to customs rates, please refer to your local customs office for information on duties payable.

Concentric Cycling is not liable for local duties, taxes or losses that may arise from a customer refusing to pay the relevant duties on a purchase.



Domestic Shipping (Australia)

Standard shipping - AU $5 flat rate

Express shipping - AU $10 flat rate

Free standard shipping / discounted express shipping on orders over AU $100.



Shipping time in business days is as follows:

Standard - 2 to 8 days

Express - 1 to 4 days



All orders are dispatched out of Perth, Western Australia. Delivery time varies depending on the location.

Carbon Nylon is a strong, durable and heat resistance material, however it can be worn down over time from unwanted abrasion. To ensure a long life for your mount, we recommend cleaning your bike light and mount after a wet and dirty ride. Particular attention should be given to remove any sand/grit from the interface between the mount and your light.



To ensure a perfect fit of your Concentric Cycling product, please follow these recommended installation instructions:



Seat post mounts

1. Remove the nut and bolt from the assembled mount using a 2.5mm hex key.

2. Carefully flex the seat clamp open and fit it around the seat post.

3. Position the seat clamp in the desired position (e.g. at the base of the seat post).

4. Pre-install the bolt into the seat clamp (drive-side of the bike).

5. Place the light mount into the opening, and commence threading the bolt into place using a 2.5mm hex key.

6. Before threading the bolt through the other side of the seat clamp, place the lock nut into position and hold.

7. Slowly thread the bolt through the non-drive side of the seat clamp and into the lock nut until it is hand tight (max 1.5nm).

8. Do not over tighten or assemble at high speed as this may result in galling of the metal parts and/or damage to the lock nut.



Saddle mounts

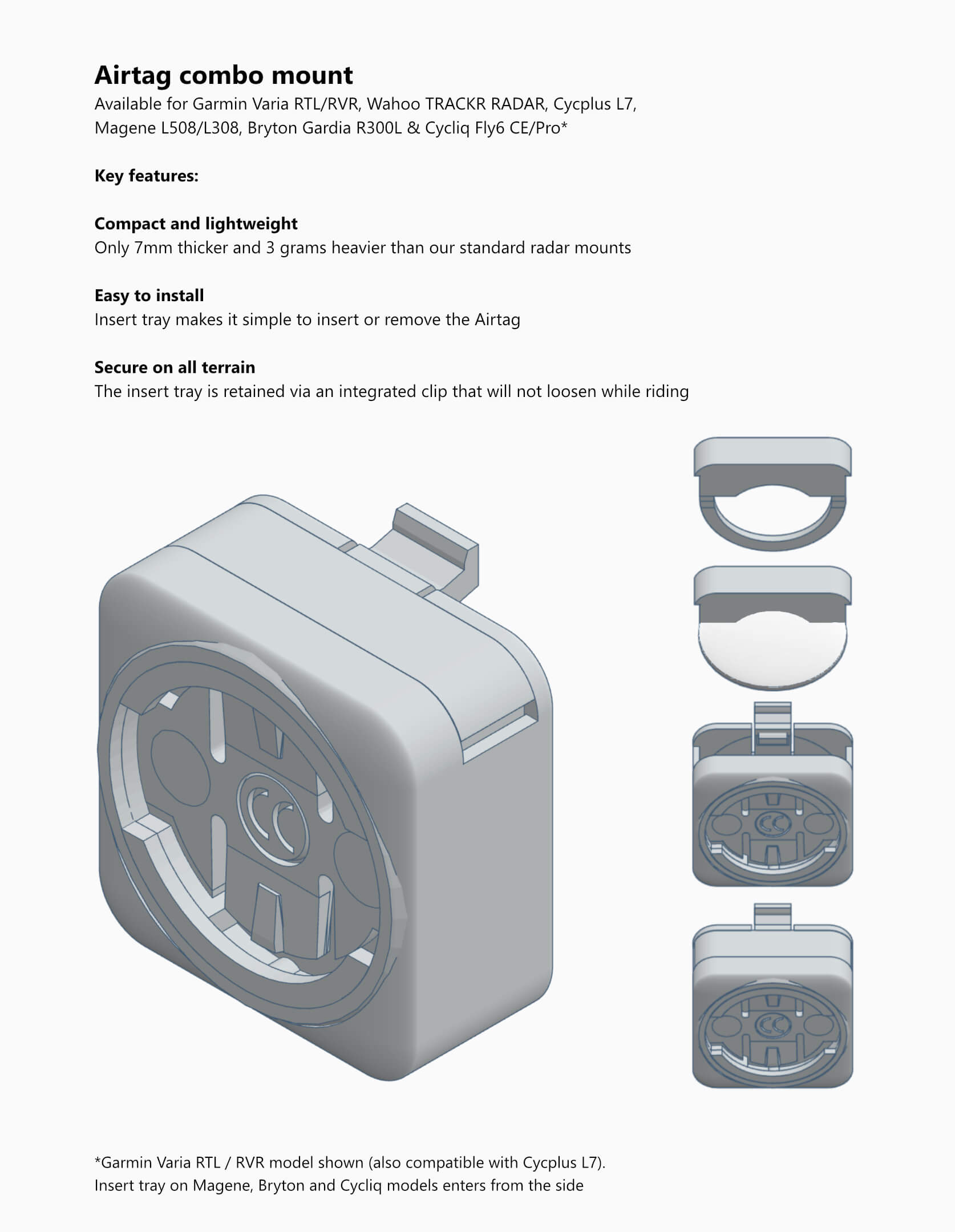

 1. If using an Apple Airtag model, place the Airtag into the base plate and pivot the cover plate into position starting from the clip side.

2. Position the mount below the mounting points on your saddle

3. Install the bolts through the mounting points and screw them into the saddle until hand tight (max 1.5nm).

4. Remove the M5 bolt and lock nut from the GoPro mount, being careful not to drop them.

5. Insert your chosen accessory or GoPro adaptor, and reinstall the M5 bolt and lock nut until it is loosely in position.

6. Adjust the GoPro adaptor to your preferred angle.

7. Tighten the M5 bolt until it is hand tight (max 1.5nm).

8. Do not over tighten or assemble at high speed as this may result in galling of the metal parts and/or damage to the lock nut.

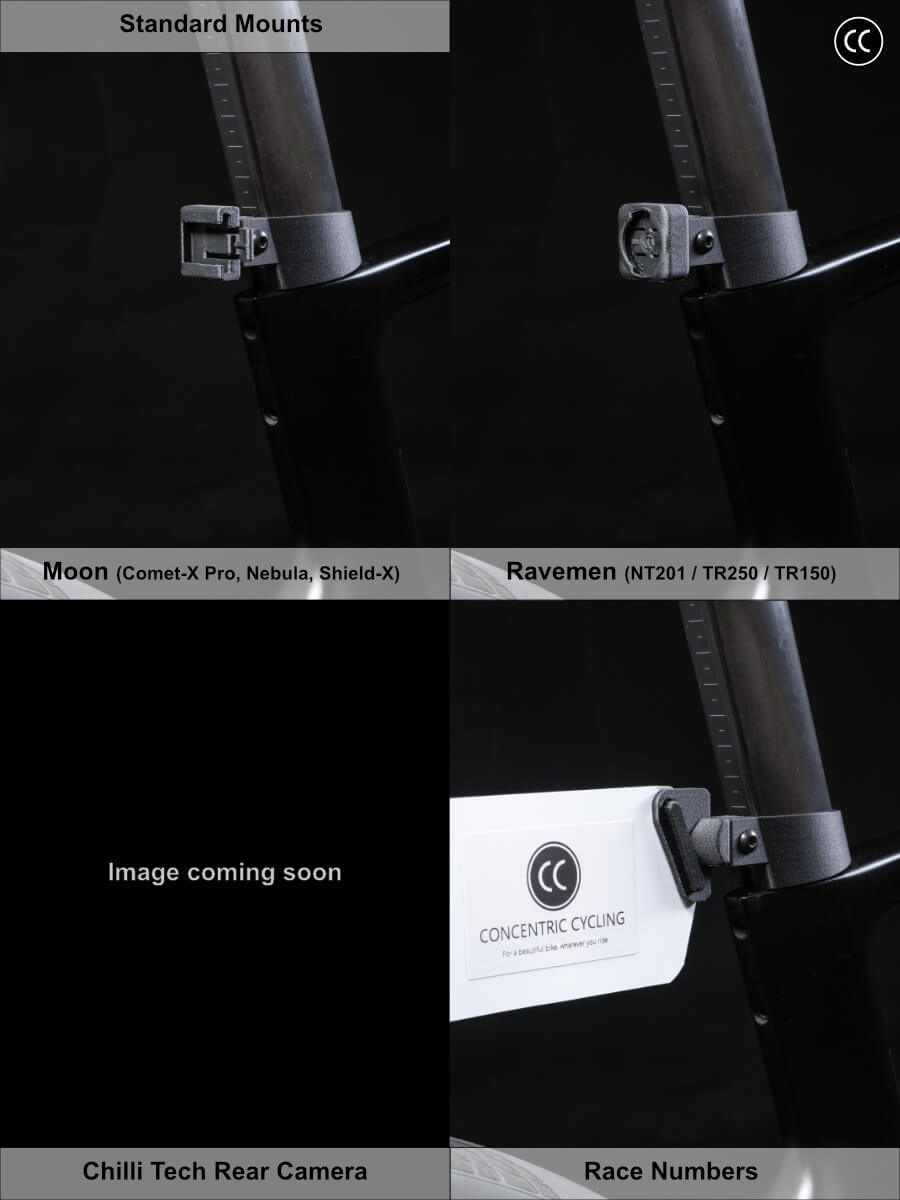

Race number holder / adaptor

1. Slide in the race number

2. Insert the fixing through the race number and holder

3. Click in the locking mechanism

4. Twist/slide the race number holder into your Concentric Cycling Seat Post Mount



Head unit mounts

1. Thread the bolt into either the GoPro or Blank attachment

2. Position the GoPro or Blank attachment into the head unit mount and proceed to screw the bolt into the front integrated fitting on your handlebar until loosely in position

3. Position the rear bolt into the adjustable area and screw into the rear integrated fitting on your handlebar, again until loosely in position

4. Tighten the bolts using a torque wrench to max 2.0nm

5. If using the GoPro attachment, insert your chosen accessory and thread the bolt into the lock nut until it is hand tight (max 1.5nm).

6. Do not over tighten or assemble at high speed as this may result in galling of the metal parts and/or damage to the head unit mount and attachments.

*Note that selected mounts (Cervelo S5 / BMC ICS) include shims which should be used to further refine the position and angle of your head unit. These should be placed between the head unit mount and the handlebars with the textured surfaces pressed together.
