Computer mount (for Canyon CP0018 Aerocockpit)
Computer mount (for Canyon CP0018 Aerocockpit)
Couldn't load pickup availability
Designed specifically for the Canyon CP0018 Aerocockpit (as used on the Gen3/4 Aeroad, Endurace and new Ultimate), this computer mount offers the perfect fit for your bicycle computer and out front accessories in a lightweight and durable design.
For best aerodynamic performance (and a perfectly horizontal fit), simply choose the relevant angle to suit your frame size. Examples have been included for the Aeroad. Note that head tube angles differ for the Endurace and Ultimate. For these you will need to calculate the correct angle. Details below.
Included with the mount are two fittings that allow you to run either a GoPro compatible accessory, or nothing at all - perfect for race day when every watt counts.
The computer adaptor can be used with either Wahoo or Garmin Compatible units. The unit will be supplied set up to your specification, but can be changed by simply repositioning the adaptor when needed.
Manufactured in Australia from Carbon Nylon for strength, durability and heat/UV resistance. Supplied with stainless steel fixings.
————————————————
Specifications (Standard Length):
Weight with Blank attachment = 41g
Weight with GoPro attachment = 48g
Computer Compatibility:
Standard - Suitable for most bicycle computers (up to and including the Hammerhead Karoo2)
Extra Long - Suitable for larger head units up to the Garmin Edge 1040
Bolt Spacing:
Suitable for the Canyon CP0018 handlebars which feature a bolt spacing of 44mm, however may also be used on other bars with a bolt spacing of between 20 and 46.5mm (centre to centre).
————————————————
How to select your mount angle:
In order to select the perfect angle to have your head unit positioned horizontally, please use the following calculation:
Head Tube Angle - Stem Angle - 90 = Computer Mount Angle
For example, for a Medium sized Endurace:
(72.75 degrees) - (-6 degrees) - (90) = -11.25 degrees
Head tube angles can be found from the geometry charts on the Canyon website.
Shipping & Returns
Shipping & Returns
We ship most orders within 1 business day.
International Shipping
New Zealand - AU $7 flat rate
US / Canada / Asia Pacific - AU $10 flat rate
UK / Europe / Rest of World - AU $15 flat rate
Free standard shipping / discounted express shipping on orders over AU $100.
Shipping time from Australia in business days is as follows:
USA / UK / NZ
Standard - 5 to 15 days
Express - 3 to 8 days
Canada
Standard - 10 to 20 days
Express - 5 to 10 days
Asia Pacific
Standard - 10 to 20 days
Express - 4 to 8 days
Europe / Rest of World
Standard - 15 to 25 days
Express - 6 to 10 days
International orders may be subject to customs rates, please refer to your local customs office for information on duties payable.
Concentric Cycling is not liable for local duties, taxes or losses that may arise from a customer refusing to pay the relevant duties on a purchase.
Domestic Shipping (Australia)
Standard shipping - AU $5 flat rate
Express shipping - AU $10 flat rate
Free standard shipping / discounted express shipping on orders over AU $100.
Shipping time in business days is as follows:
Standard - 2 to 8 days
Express - 1 to 4 days
All orders are dispatched out of Perth, Western Australia. Delivery time varies depending on the location.
Care and Installation Instructions
Care and Installation Instructions
Carbon Nylon is a strong, durable and heat resistance material, however it can be worn down over time from unwanted abrasion. To ensure a long life for your mount, we recommend cleaning your bike light and mount after a wet and dirty ride. Particular attention should be given to remove any sand/grit from the interface between the mount and your light.
To ensure a perfect fit of your Concentric Cycling product, please follow these recommended installation instructions:
Seat post mounts
1. Remove the nut and bolt from the assembled mount using a 2.5mm hex key.
2. Carefully flex the seat clamp open and fit it around the seat post.
3. Position the seat clamp in the desired position (e.g. at the base of the seat post).
4. Pre-install the bolt into the seat clamp (drive-side of the bike).
5. Place the light mount into the opening, and commence threading the bolt into place using a 2.5mm hex key.
6. Before threading the bolt through the other side of the seat clamp, place the lock nut into position and hold.
7. Slowly thread the bolt through the non-drive side of the seat clamp and into the lock nut until it is hand tight (max 1.5nm).
8. Do not over tighten or assemble at high speed as this may result in galling of the metal parts and/or damage to the lock nut.
Saddle mounts
1. If using an Apple Airtag model, place the Airtag into the base plate and pivot the cover plate into position starting from the clip side.
2. Position the mount below the mounting points on your saddle
3. Install the bolts through the mounting points and screw them into the saddle until hand tight (max 1.5nm).
4. Remove the M5 bolt and lock nut from the GoPro mount, being careful not to drop them.
5. Insert your chosen accessory or GoPro adaptor, and reinstall the M5 bolt and lock nut until it is loosely in position.
6. Adjust the GoPro adaptor to your preferred angle.
7. Tighten the M5 bolt until it is hand tight (max 1.5nm).
8. Do not over tighten or assemble at high speed as this may result in galling of the metal parts and/or damage to the lock nut.
Race number holder / adaptor
1. Slide in the race number
2. Insert the fixing through the race number and holder
3. Click in the locking mechanism
4. Twist/slide the race number holder into your Concentric Cycling Seat Post Mount
Head unit mounts
1. Thread the bolt into either the GoPro or Blank attachment
2. Position the GoPro or Blank attachment into the head unit mount and proceed to screw the bolt into the front integrated fitting on your handlebar until loosely in position
3. Position the rear bolt into the adjustable area and screw into the rear integrated fitting on your handlebar, again until loosely in position
4. Tighten the bolts using a torque wrench to max 2.0nm
5. If using the GoPro attachment, insert your chosen accessory and thread the bolt into the lock nut until it is hand tight (max 1.5nm).
6. Do not over tighten or assemble at high speed as this may result in galling of the metal parts and/or damage to the head unit mount and attachments.
*Note that selected mounts (Cervelo S5 / BMC ICS) include shims which should be used to further refine the position and angle of your head unit. These should be placed between the head unit mount and the handlebars with the textured surfaces pressed together.
Customer Reviews

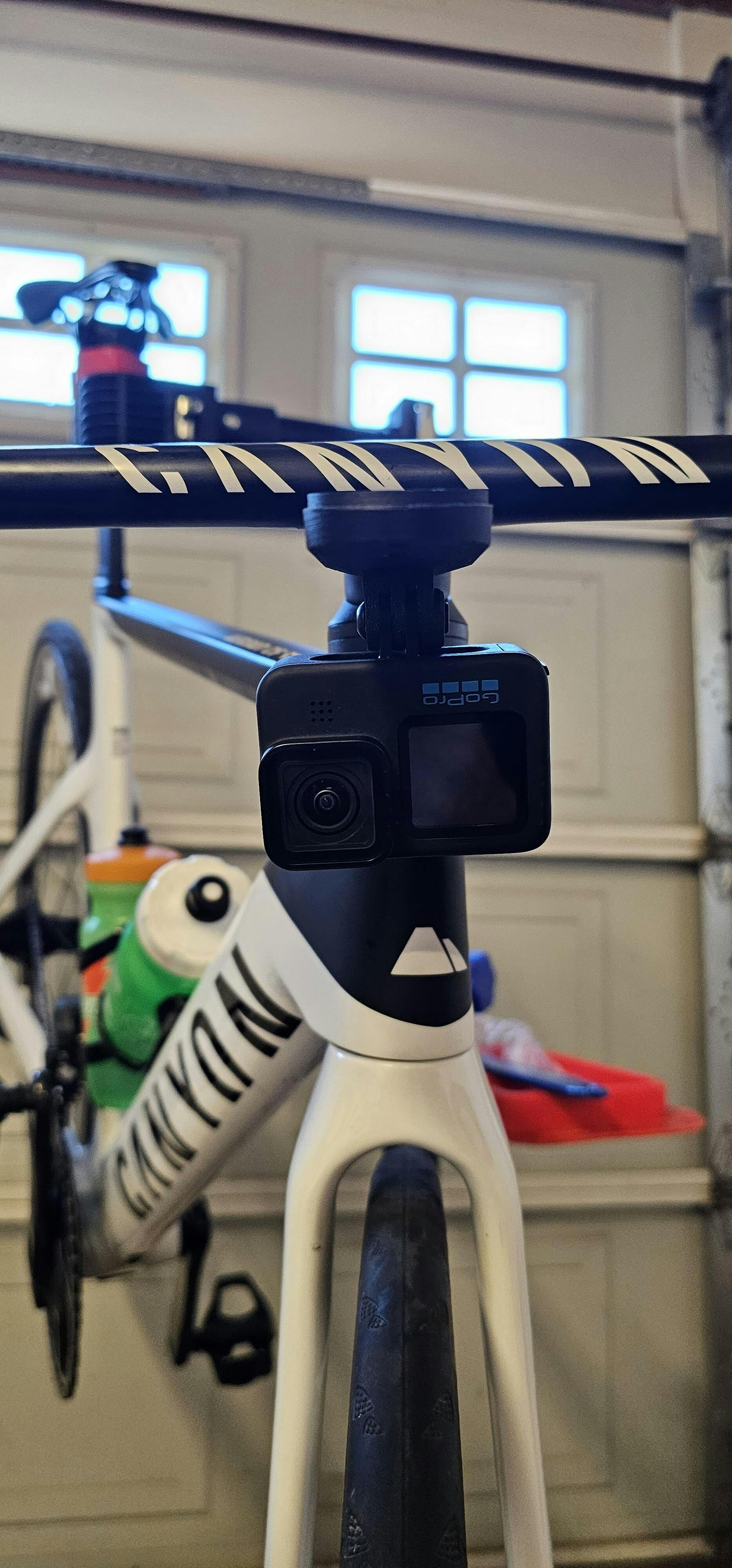

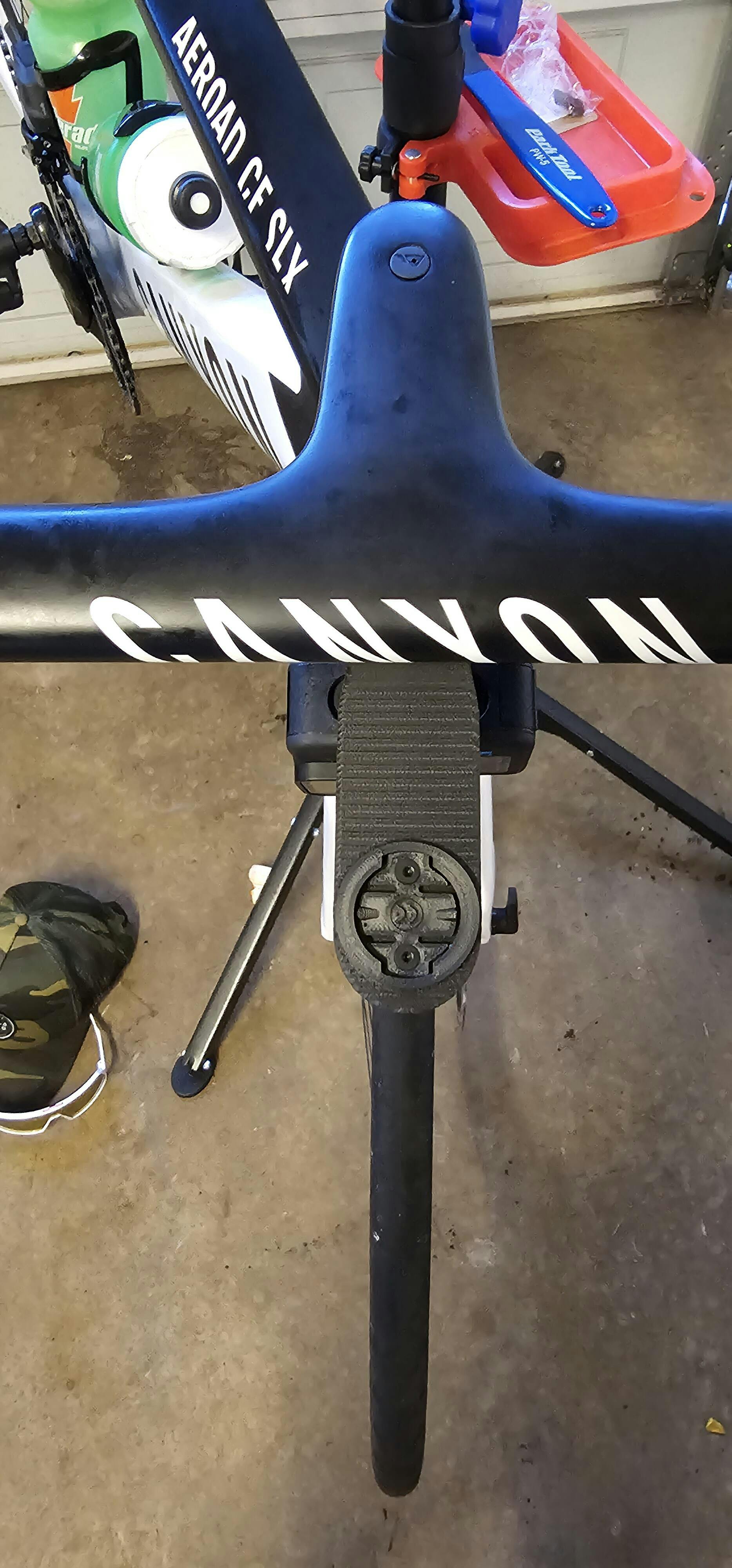

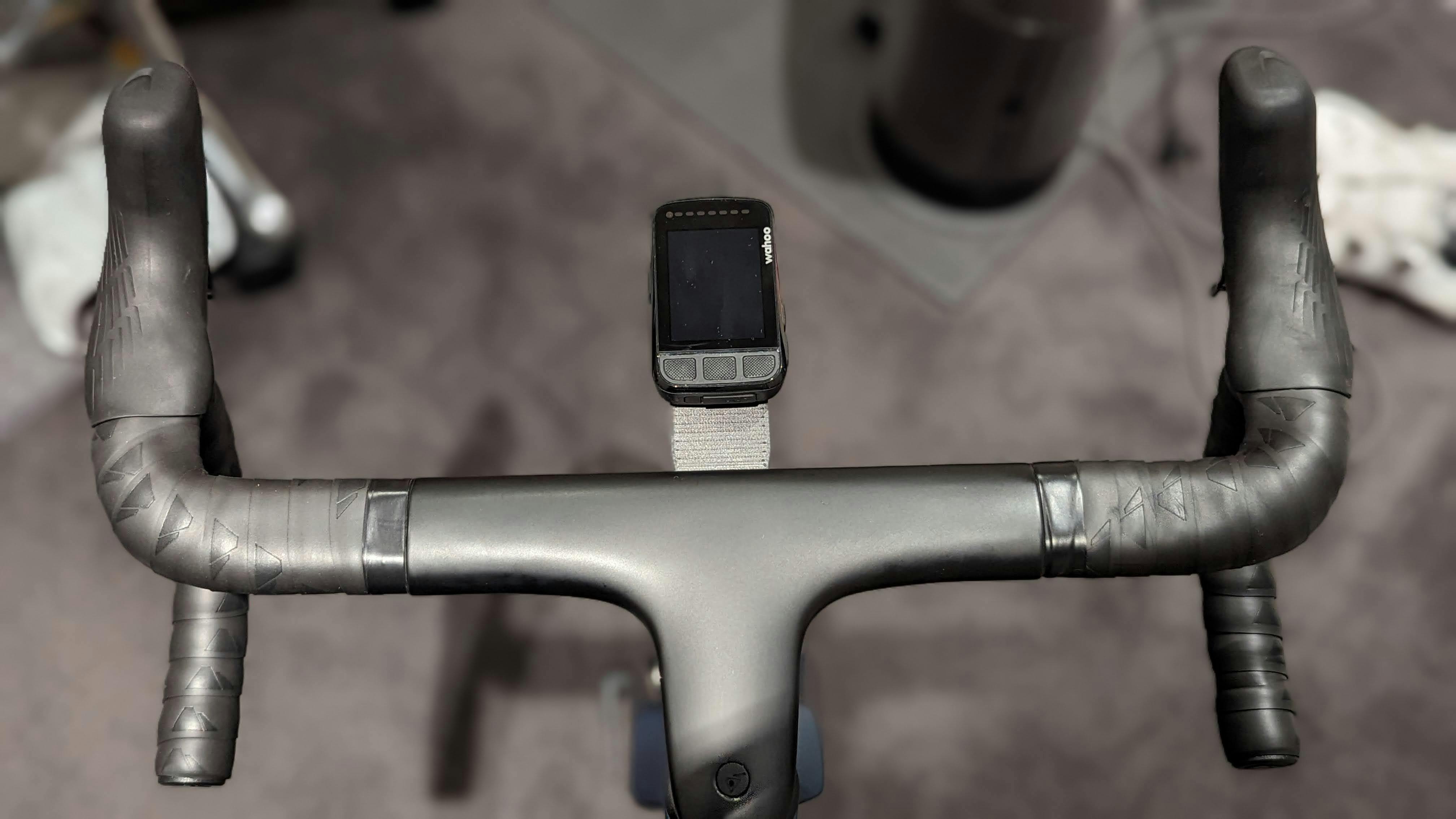

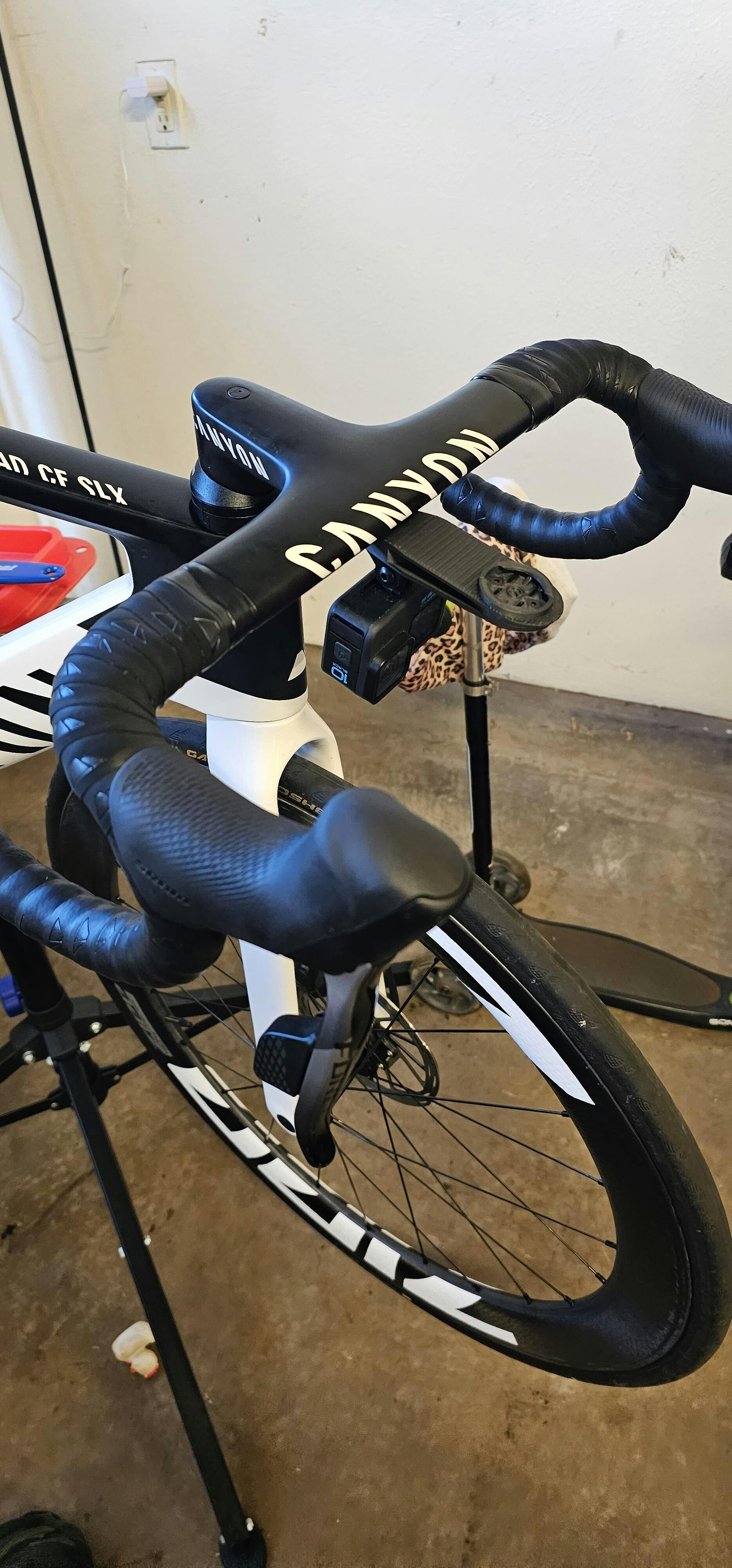

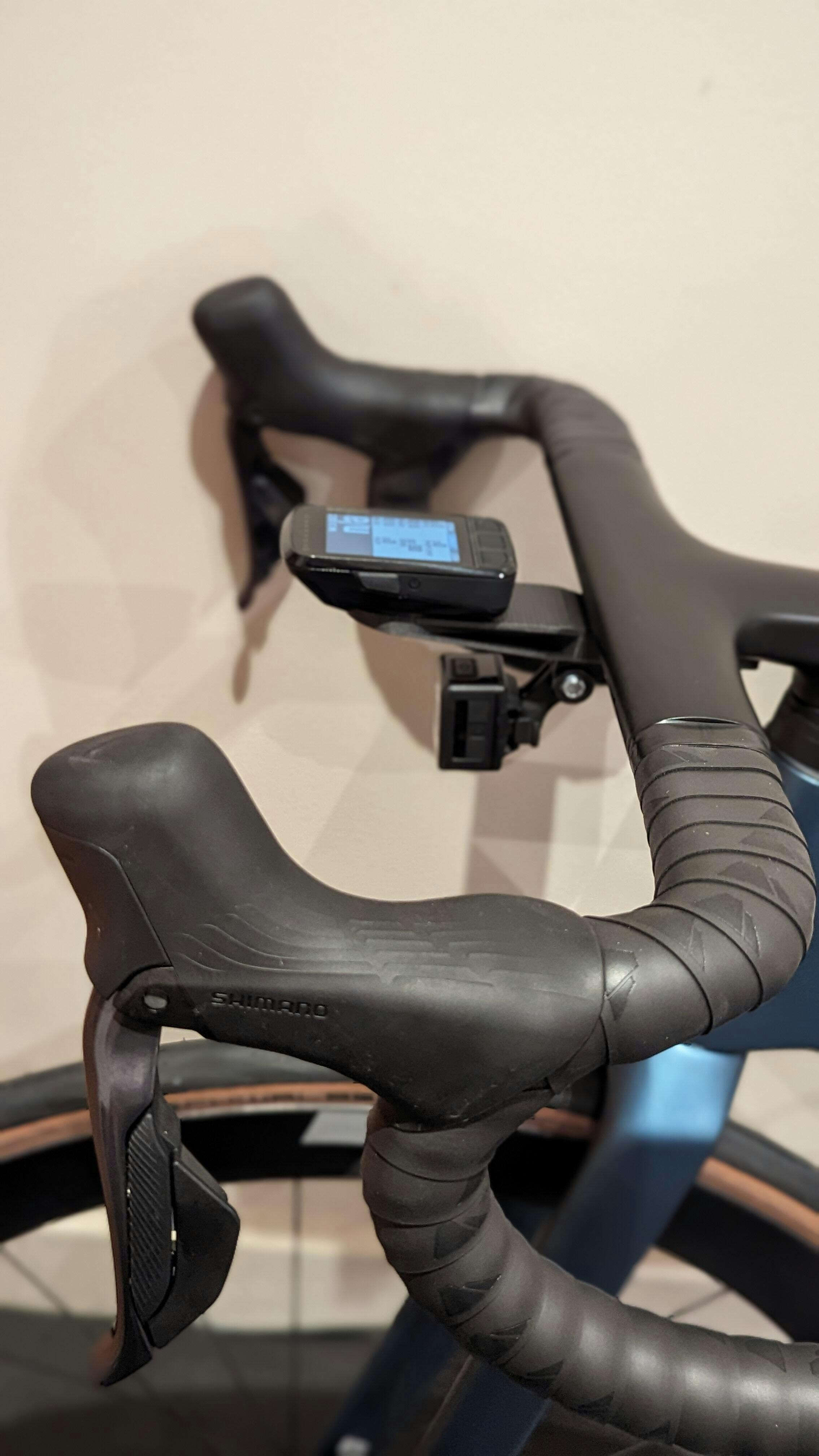

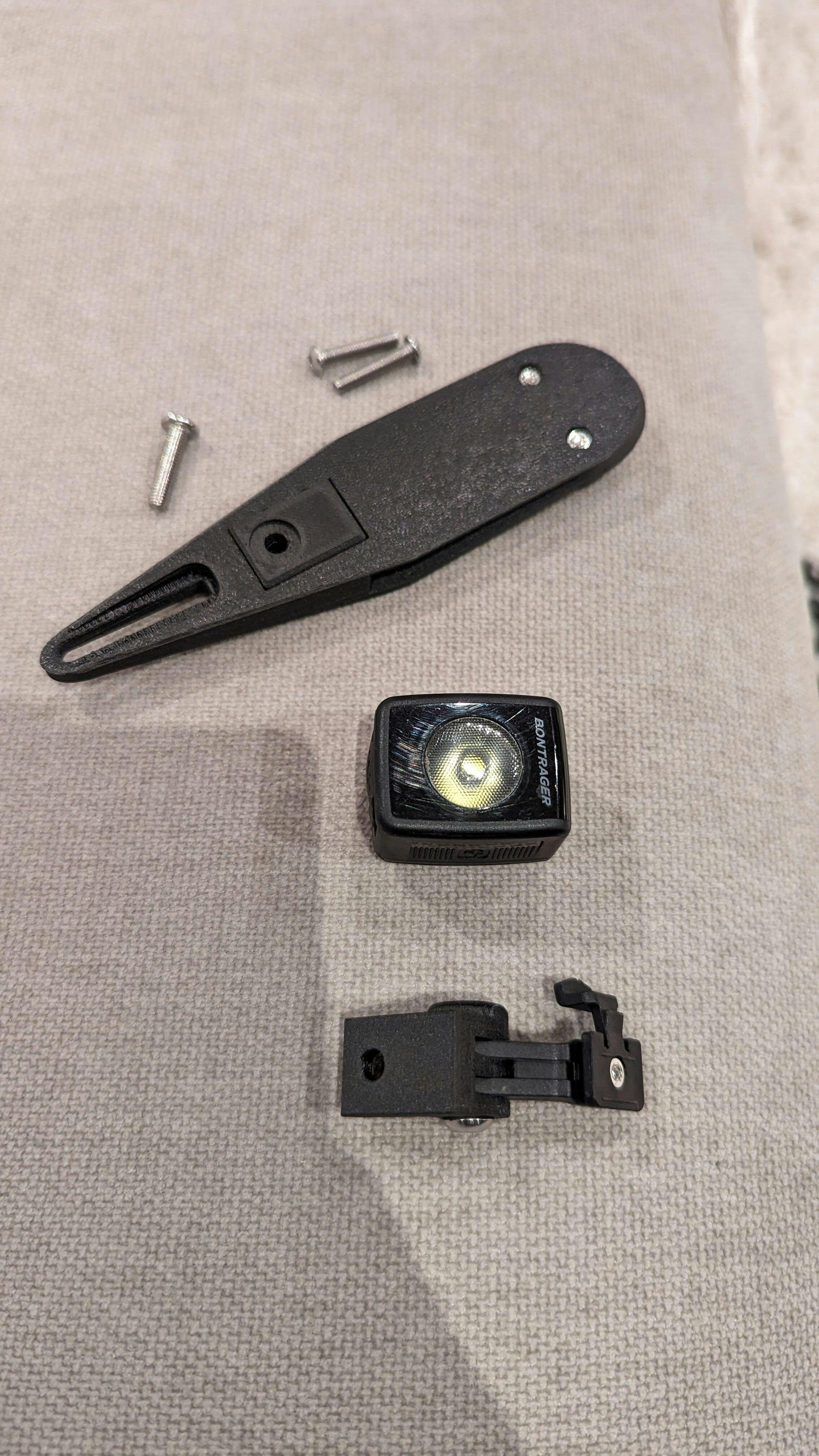

Great product as always. Thanks.
The product itself works but i feel like my wahoo computer fall off during rought or bumpy ride.. it doesnt have this “click” when i snap it in… compare to my original wahoo mount. I hope my computer doesnt fall off
Hi Christopher. Thank you for your review and feedback. We have tested the interface extensively and can advise that while the sound is softened compared to a generic insert, there is a physical connection between the tabs of the insert and the indents on the computer mount. We are confident that there is no risk of the computer moving out of place from vibration on the road.
Just arrived today, fits on the cockpit no problem. A few areas where there is a little spacing but it sits tight nonetheless. No shifting by manual pressure, will update once taken through a ride 🤙🏻
I think I am the first to try this new mount on my new canyon ultimate and it looks fantastic. Very easy to install and blends in nicely with the integrated cockpit.
