Concentric Cycling

Computer mount (for Cervelo S5 MY23+)

Name: Computer mount (for Cervelo S5 MY23+)
Brand: Concentric Cycling
SKU: HU02GMSD080
Price: 99.0 AUD
Availability: InStock

Computer mount (for Cervelo S5 MY23+)

$99.00 AUD

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

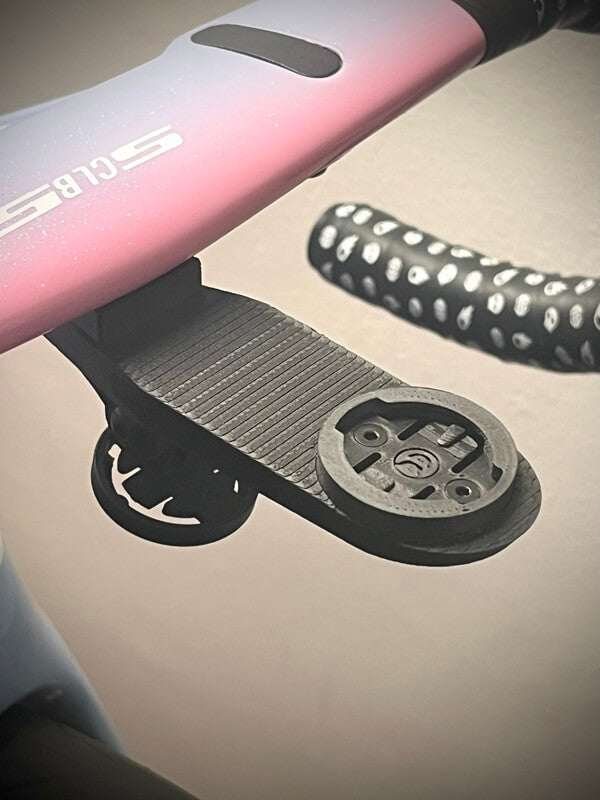

The Cervélo S5 HB14 handlebars demand a perfectly fitted mount for your bicycle computer and out front accessories. Our computer mount fulfils this need with an aerodynamic, lightweight and durable design.

Included with the mount are two fittings that allow you to run either a GoPro compatible accessory, or nothing at all - perfect for race day when every watt counts.

The computer adaptor can be used with either Wahoo or Garmin Compatible units. The unit will be supplied set up to your specification, but can be changed by simply rotating the adaptor when needed.

Manufactured in Australia from Carbon Nylon for strength, durability and heat/UV resistance. Supplied with stainless steel fixings.

————————————————

Specifications (Standard):

Weight with Blank attachment = 38g

Weight with GoPro attachment = 45g

Computer Compatibility:

Standard - Suitable for most bicycle computers (up to and including the Garmin Edge 1040)

Extra Long - Suitable for the Garmin Edge 1050

Bolt Spacing:

Shortened tail and bolt spacing of 14.9mm specifically for the Cervélo S5 MY23+.

————————————————

How to select your mount angle:

In order to have your head unit positioned horizontally, please select the relevant angle for the size of your Cervélo S5 MY23+ frame.

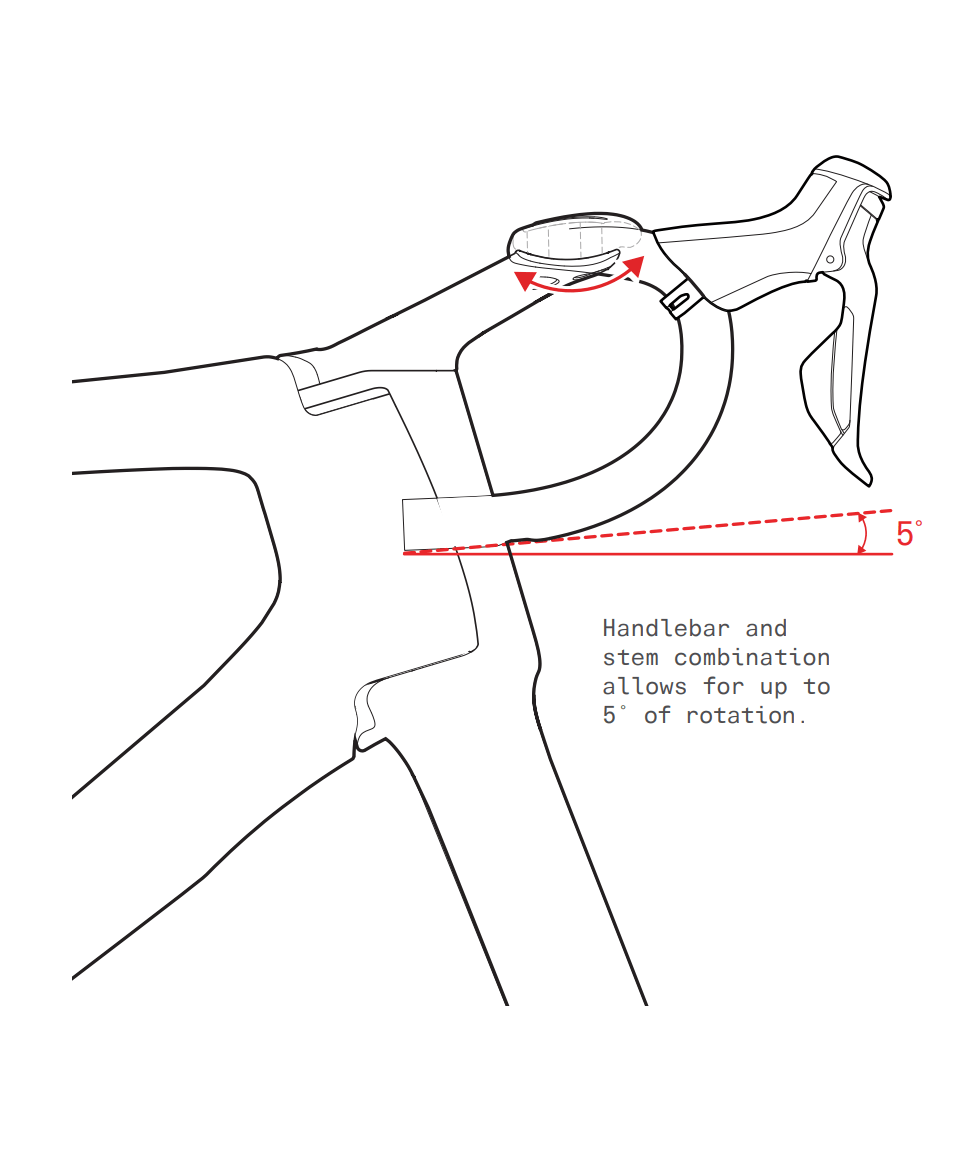

Note that the mount is designed to be used with the S5 HB14 handlebars in a level position. The handlebars can be tilted down by up to 5 degrees, however this will also adjust the angle of the computer mount.

To allow for this, we include a set of 3 shims. These will enable you to lower the stack height and adjust the angle of your head unit, so that it sits level and in line with your S5 handlebars. Shim angles include 0, 2.5 and 5.0 degrees.

Shipping & Returns

We ship most orders within 1 business day.

International Shipping

New Zealand - AU $7 flat rate

US / Canada / Asia Pacific - AU $10 flat rate

UK / Europe / Rest of World - AU $15 flat rate

Free standard shipping / discounted express shipping on orders over AU $100.

Shipping time from Australia in business days is as follows:

USA / UK / NZ
Standard - 5 to 15 days
Express - 3 to 8 days

Canada
Standard - 10 to 20 days
Express - 5 to 10 days

Asia Pacific
Standard - 10 to 20 days
Express - 4 to 8 days

Europe / Rest of World
Standard - 15 to 25 days
Express - 6 to 10 days

International orders may be subject to customs rates, please refer to your local customs office for information on duties payable.

Concentric Cycling is not liable for local duties, taxes or losses that may arise from a customer refusing to pay the relevant duties on a purchase.

Domestic Shipping (Australia)

Standard shipping - AU $5 flat rate

Express shipping - AU $10 flat rate

Free standard shipping / discounted express shipping on orders over AU $100.

Shipping time in business days is as follows:

Standard - 2 to 8 days

Express - 1 to 4 days

All orders are dispatched out of Perth, Western Australia. Delivery time varies depending on the location.

Return Policy

We offer a 30 day return policy. If you are unhappy with your purchase for whatever reason, including change of mind, contact us within 30 days of making your purchase, and we will happily issue a replacement or refund.

To be eligible for a return, your item must be unused and in the same condition that you received it. Partial refunds may be granted at the discretion of Concentric Cycling whereby these conditions are not met.

Return Shipping

You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund.

Depending on where you live, the time it may take for your exchanged product to reach you, may vary.

If you are shipping an item over $75, you should consider using a trackable shipping service or purchasing shipping insurance. We don’t guarantee that we will receive your returned item.

Refunds

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.

If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment.

Exchanges

We only replace items if they are defective or damaged. If you need to exchange it for the same item, send us an email at taylor@concentriccycling.com

Care and Installation Instructions

Carbon Nylon is a strong, durable and heat resistance material, however it can be worn down over time from unwanted abrasion. To ensure a long life for your mount, we recommend cleaning your bike light and mount after a wet and dirty ride. Particular attention should be given to remove any sand/grit from the interface between the mount and your light.

To ensure a perfect fit of your Concentric Cycling product, please follow these recommended installation instructions:

Seat post mounts

1. Remove the nut and bolt from the assembled mount using a 2.5mm hex key.

2. Carefully flex the seat clamp open and fit it around the seat post.

3. Position the seat clamp in the desired position (e.g. at the base of the seat post).

4. Pre-install the bolt into the seat clamp (drive-side of the bike).

5. Place the light mount into the opening, and commence threading the bolt into place using a 2.5mm hex key.

6. Before threading the bolt through the other side of the seat clamp, place the lock nut into position and hold.

7. Slowly thread the bolt through the non-drive side of the seat clamp and into the lock nut until it is hand tight (max 1.5nm).

8. Do not over tighten or assemble at high speed as this may result in galling of the metal parts and/or damage to the lock nut.

Saddle mounts

1. If using an Apple Airtag model, place the Airtag into the base plate and pivot the cover plate into position starting from the clip side.

2. Position the mount below the mounting points on your saddle

3. Install the bolts through the mounting points and screw them into the saddle until hand tight (max 1.5nm).

4. Remove the M5 bolt and lock nut from the GoPro mount, being careful not to drop them.

5. Insert your chosen accessory or GoPro adaptor, and reinstall the M5 bolt and lock nut until it is loosely in position.

6. Adjust the GoPro adaptor to your preferred angle.

7. Tighten the M5 bolt until it is hand tight (max 1.5nm).

8. Do not over tighten or assemble at high speed as this may result in galling of the metal parts and/or damage to the lock nut.

Race number holder / adaptor

1. Slide in the race number

2. Insert the fixing through the race number and holder

3. Click in the locking mechanism

4. Twist/slide the race number holder into your Concentric Cycling Seat Post Mount

Head unit mounts

1. Thread the bolt into either the GoPro or Blank attachment

2. Position the GoPro or Blank attachment into the head unit mount and proceed to screw the bolt into the front integrated fitting on your handlebar until loosely in position

3. Position the rear bolt into the adjustable area and screw into the rear integrated fitting on your handlebar, again until loosely in position

4. Tighten the bolts using a torque wrench to max 2.0nm

5. If using the GoPro attachment, insert your chosen accessory and thread the bolt into the lock nut until it is hand tight (max 1.5nm).

6. Do not over tighten or assemble at high speed as this may result in galling of the metal parts and/or damage to the head unit mount and attachments.

*Note that selected mounts (Cervelo S5 / BMC ICS) include shims which should be used to further refine the position and angle of your head unit. These should be placed between the head unit mount and the handlebars with the textured surfaces pressed together.
